EL-HR40

Controller

Remote Control

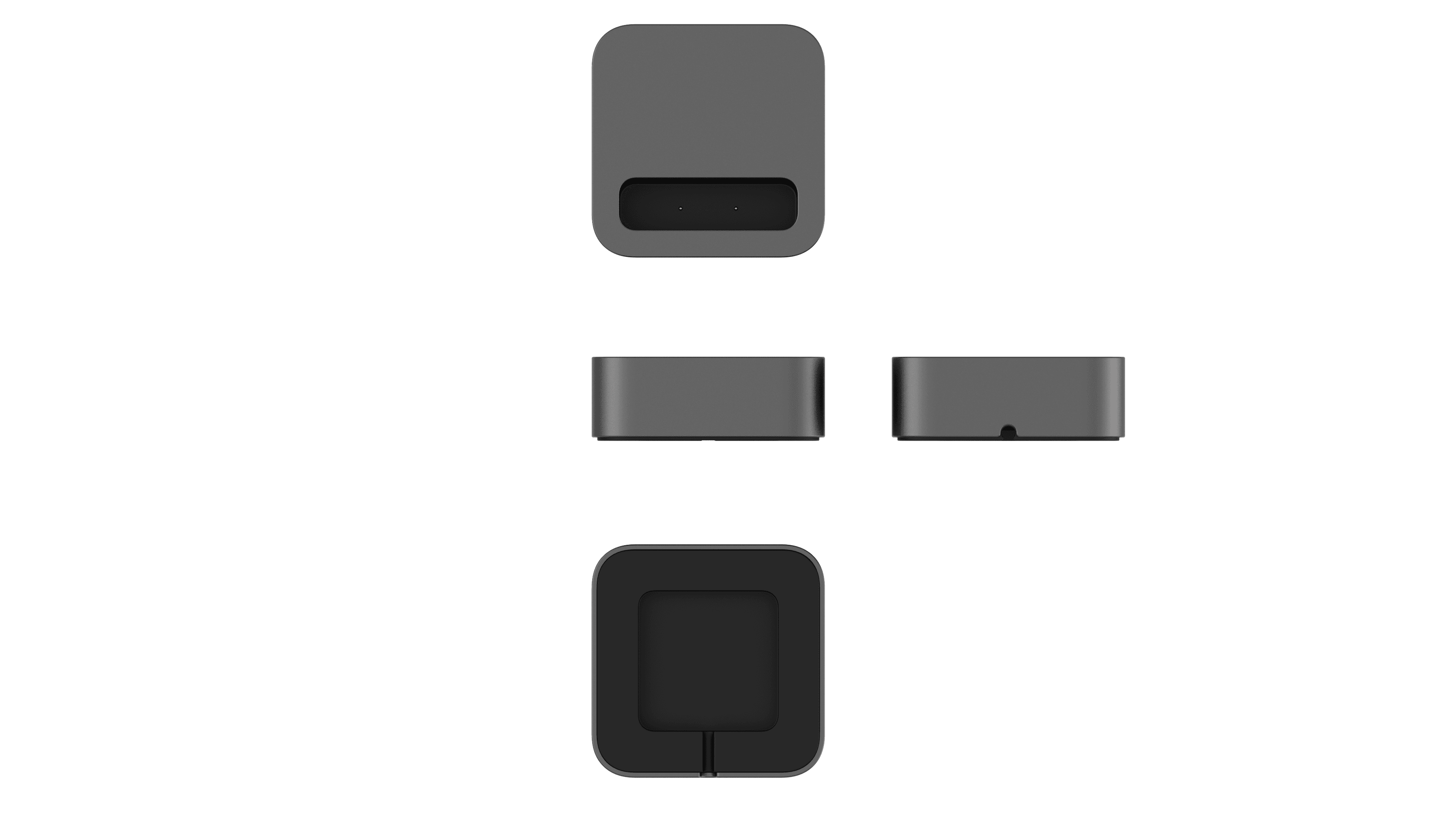

3D rendering of a gray electronic device.

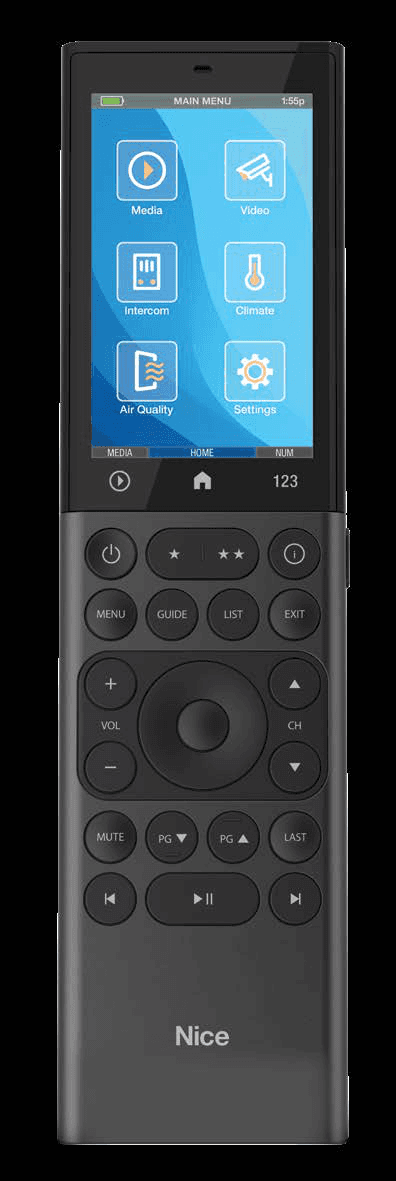

Nice remote control with touchscreen and button interface.

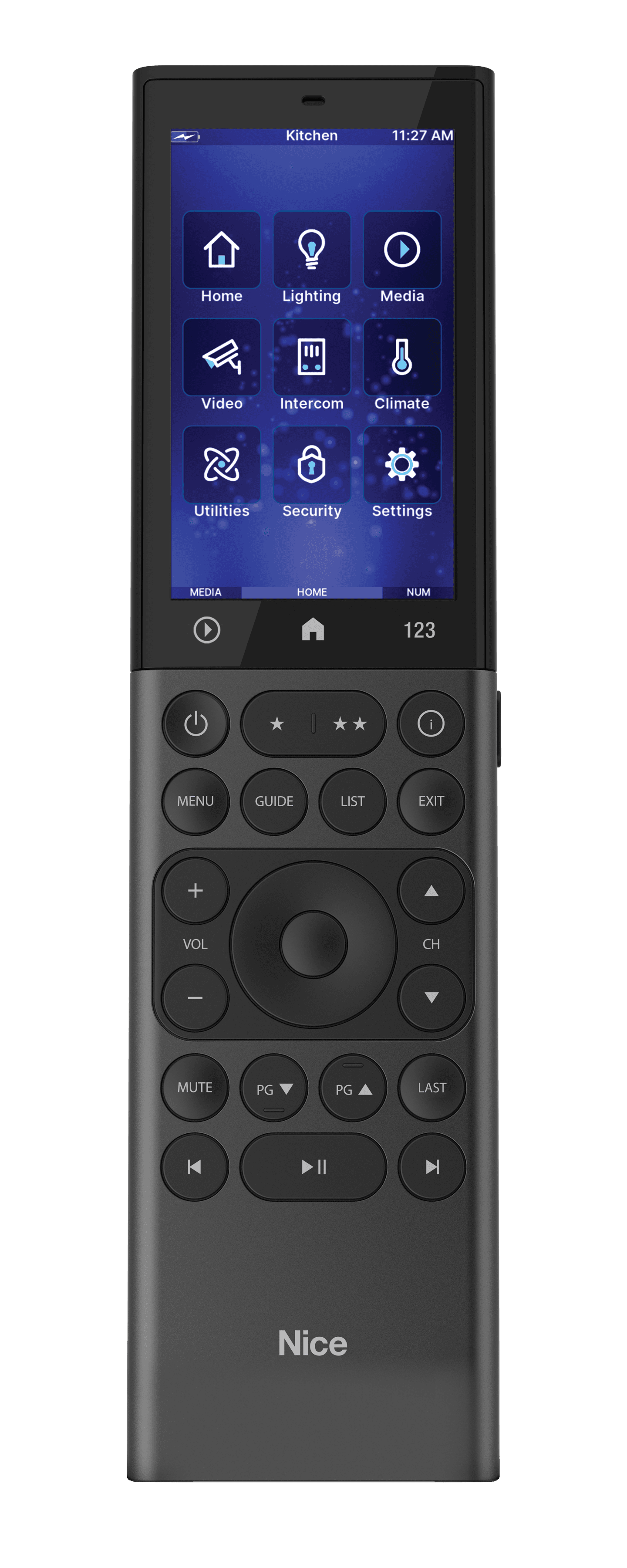

Touchscreen remote with icons for home, lighting, media, video, intercom, climate, utilities, security, settings.

Gray square with black oval containing two small dots

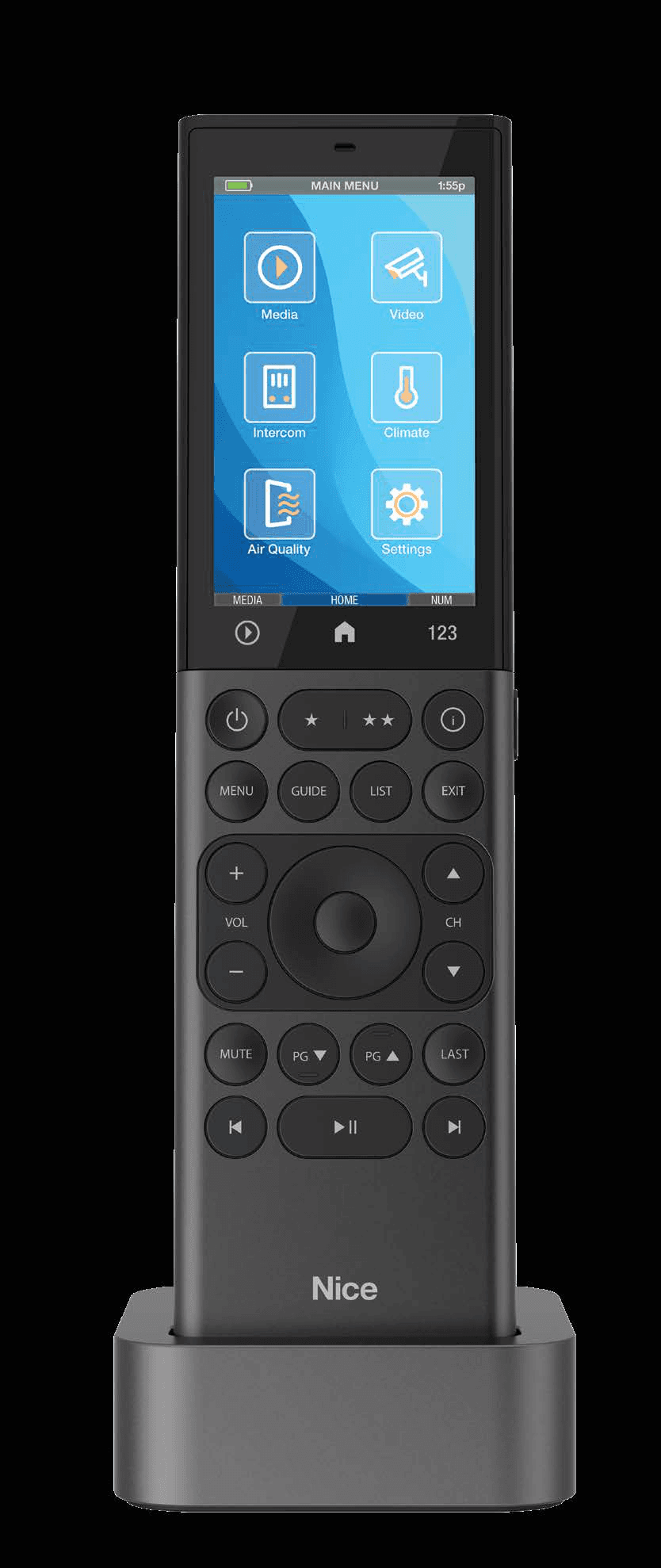

Smart home remote with touch screen menu.

NICE

EL-HR40

Multifunction smart home remote with 3.1-inch touchscreen and intercom

Control System

Get Price

The remote control experience, redefined.

The HR40 Remote Control is a full-fledged control interface that lets you answer the front door with video, view surveillance cameras, or communicate with other interfaces using intercom, all from a 3.1" high resolution touchscreen. With swipe, scroll and touch controls, the HR40 is intuitive and provides an unparalleled user experience for control of media, lighting, climate, security, surveillance, and more.

3.1" LED backlit capacitive touchscreen with 480 x 800 resolution
Integrated intercom and video doorbell answering plus surveillance monitoring
Integrated voice control and backlit buttons that wake on motion or button press

Built for easy deployment

Wi-Fi connectivity for extended range and wireless configuration
Direct IR control without IR emitter cables and a remote finder feature

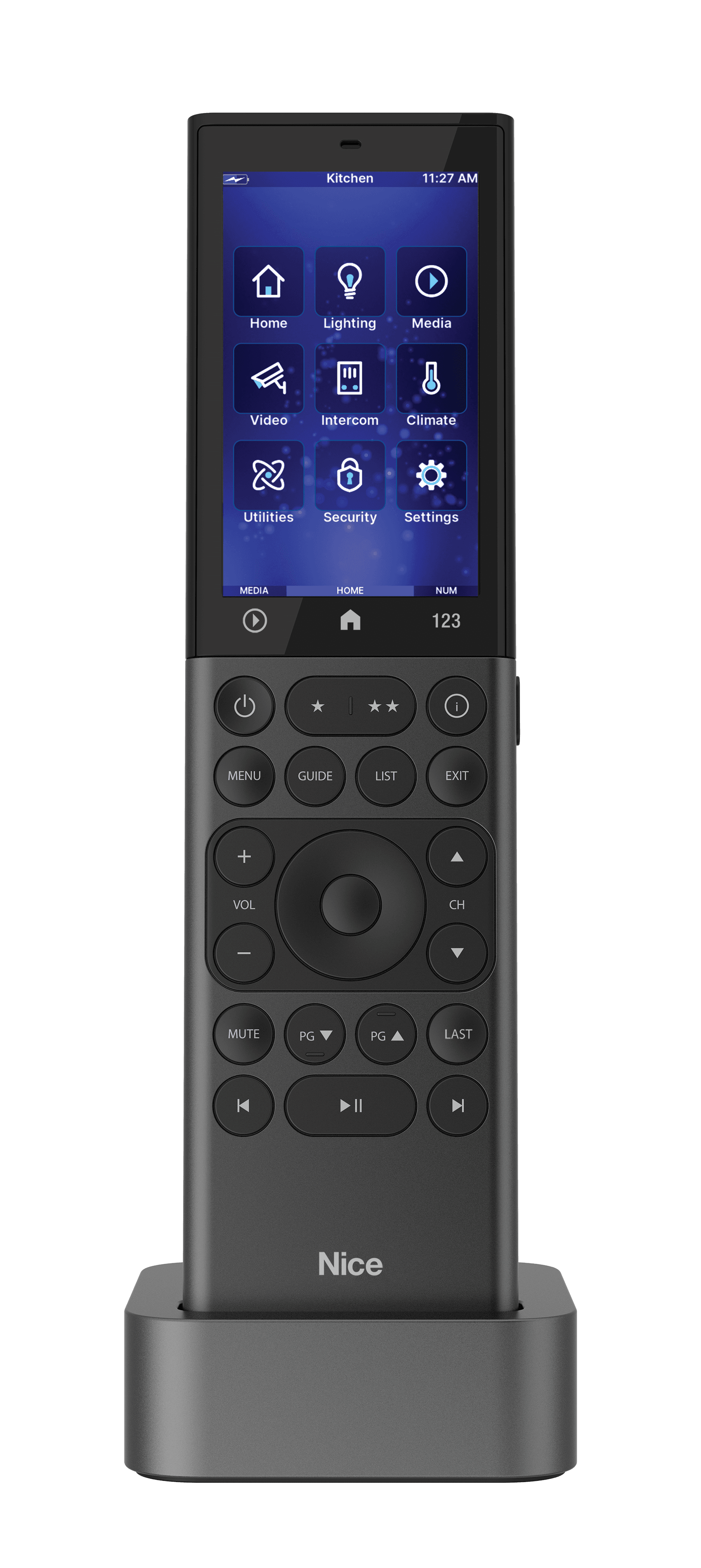

Magnetic charging base securely holds the remote in place

Wirelessly configured and personalized with interface templates, the HR40 can be quickly added to any Nice system for the most intuitive control.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Value
Model	EL-HR40
Touch Screen	LED Backlit Capacitive Touch
Screen Size	3.1" Diagonal / 78.75 mm, Ultra Thin Bezel
Illumination	Backlit with Adjustable Brightness Control
Resolution	480 x 800
Viewing Angle	80° (up/down/left/right)
Infrared	40 ft / 12 meters - Line of Sight
Wi-Fi	2.4GHz
Charge Contacts	Gold Plated
Microphone	MEMS, omni-directional, sensitivity: -42dB
Charging Power Requirements	5 V 2.00 A
Remote Dimensions	7.85 x 2 x 0.5 in / 200 x 52 x 14 mm
Remote Weight	6.5 oz / 0.18 kg
Base Dimensions	2.7 x 2.7 x 1.0 in / 70 x 70 x 25 mm
Base Weight	7.5 oz / 0.21 kg
