Specs
Main
Specification | Details |
|---|---|

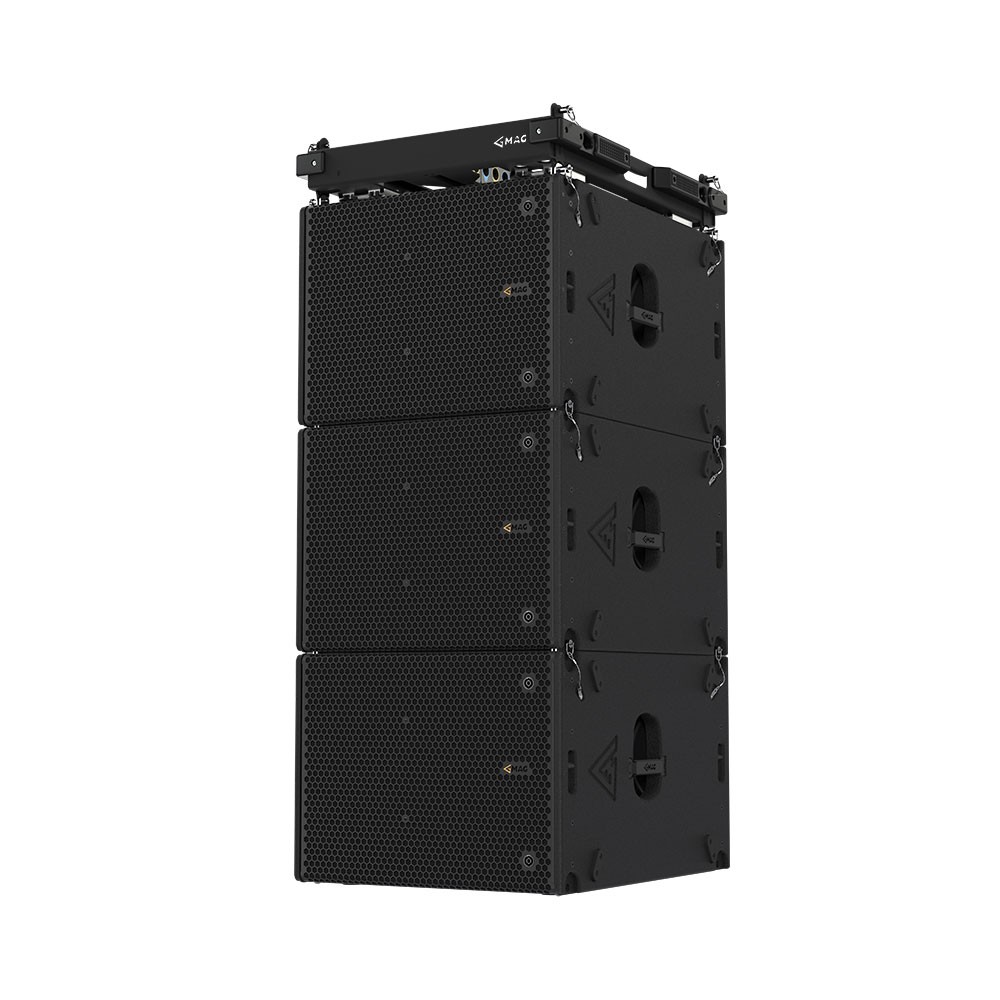

Type | Passive arrayable subwoofer |
Acoustical & Electrical Data
Specification | Details |
|---|---|
Frequency response / -10dB | 35Hz–300Hz |
Peak SPL | 137dB |
Sensitivity / 1W @ 1m | 95dB |
LF driver | 15″ with 4″ voice coil |
Impedance | 8 Ohms |
Nominal power | 1000W |
Connectors | 4 × Neutrik Speakon |
Connections & Physical Data
Specification | Details |
|---|---|
Dimensions / W × H × D | 620 × 464 × 765mm |
Net weight | 48.4kg |
Shipping weight | 51.5kg |
Mounting | Integrated flying hardware, M20 distance pole adapter |
Enclosure material | Plywood with wear-resistant paint |
Grill | Steel grill with synthetic acoustically transparent cloth |
Notes
Note | Details |
|---|---|
Peak SPL measurement | Pink noise, filtered according to AES 2-2012, crest factor 12dB |
Nominal power measurement | Based on transducer power measured according to AES 2-2012 |
