Specs

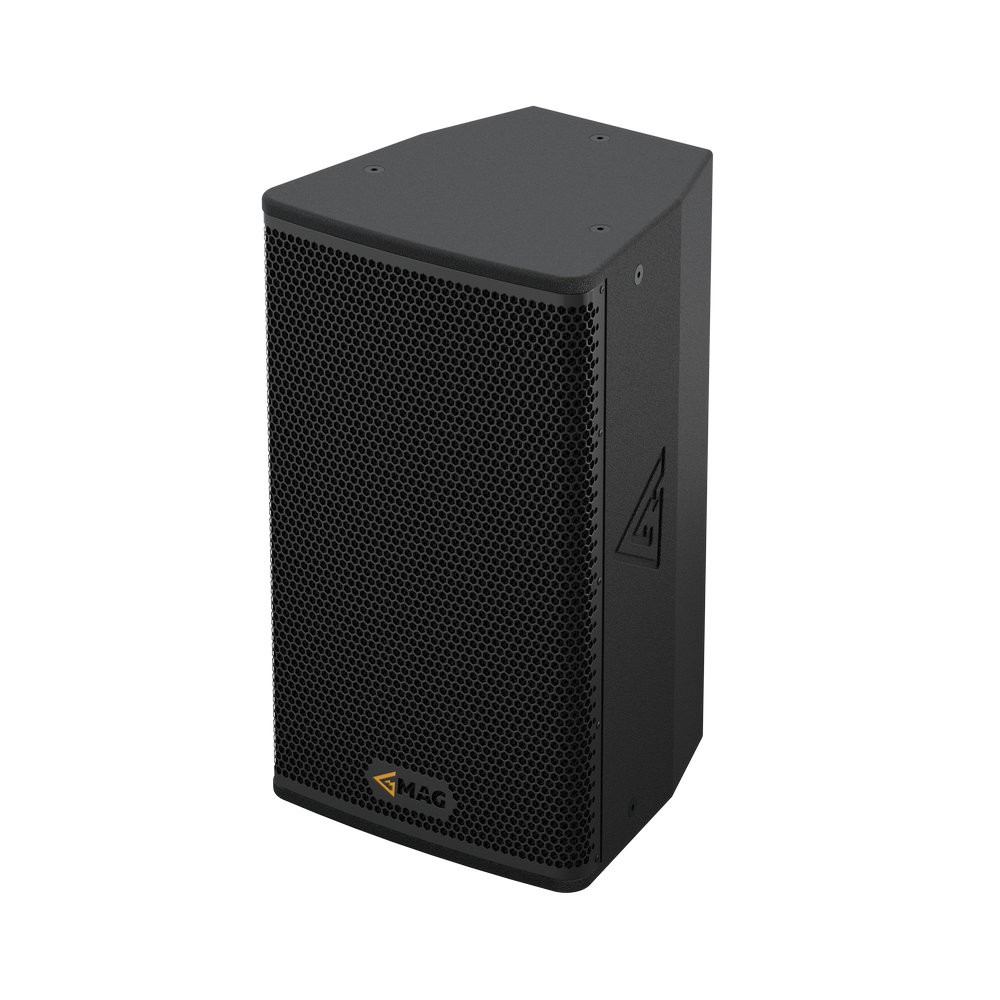

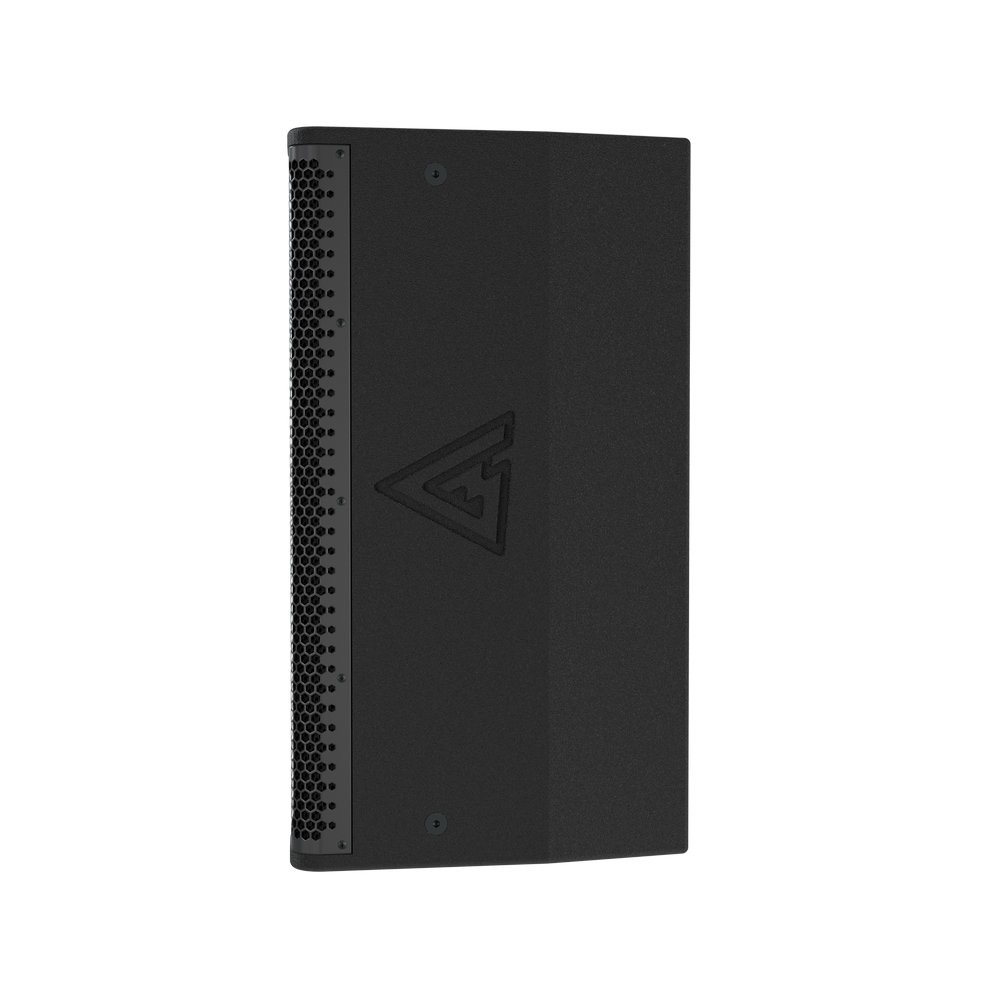

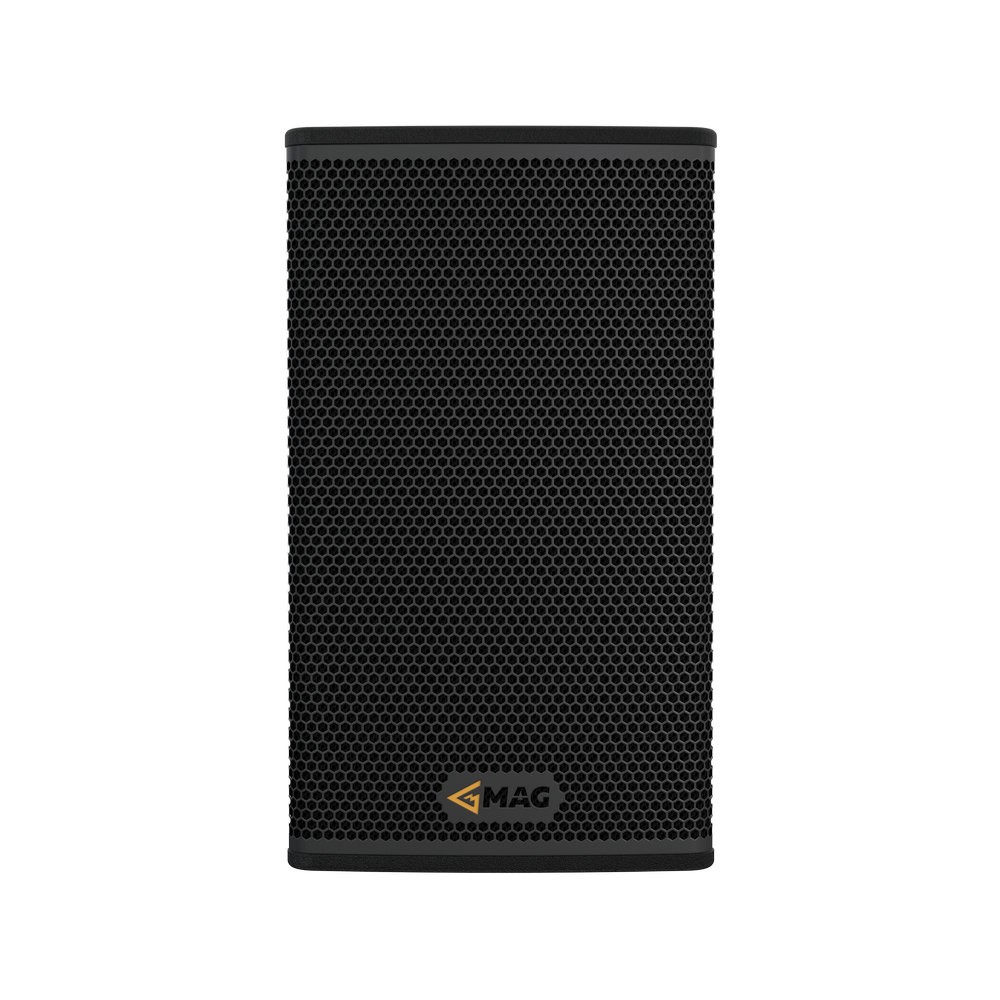

NX 12i is a passive full-range speaker, based on 12’’+1,5’ drivers, purpose-designed for installations. With well-thought-out construction, light weight and compact size, it provides considerable power and smooth sonic performance, fitting into any and all installations.
Type | Installation full-range speaker |
Acoustical & Electrical data | |
Frequency response (-10dB) | 50 - 19000 Hz |
Max SPL 1 | 134 dB |
Sensitivity (1W/1m) | 98 dB |
LF Driver | 12”, 3" VC |
HF Driver | 1,5”, 2,8" VC |
Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
Impedance | 8 Ohm |
Nominal power 2 | 500 W |

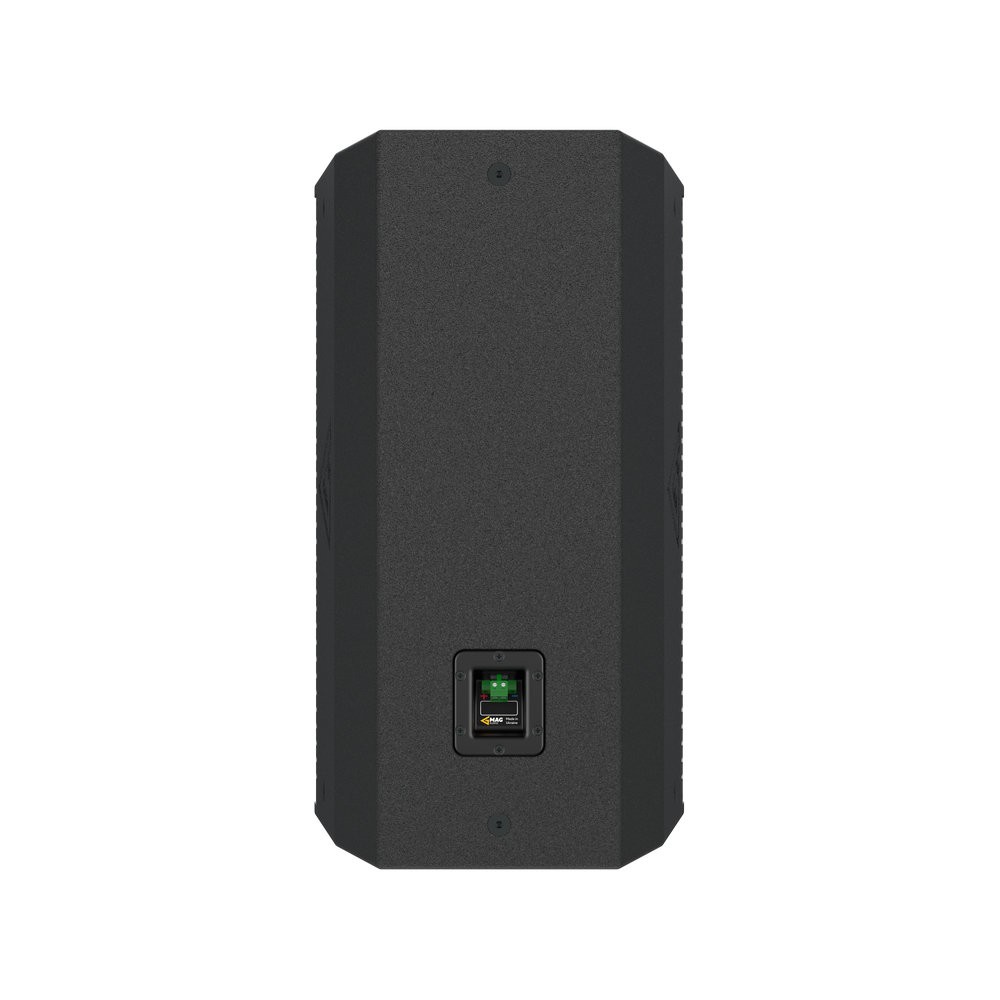

Connectors | Phoenix |
Connections and physical data | |
Dimensions (W x H x D) | 379 x 650 x 367 mm |
Net weight | 24 kg |
Shipping weight | 26 kg |
Mounting | M10 mounting points |
Enclosure material | Plywood; wear resistant paint |
Speaker protection | Steel grill, acoustically transparent backing |
