Speaker
LS2
Dual 6 1/2" woofer with neo magnet Dual 1" horn loaded dome tweeter Aluminium cabinet Active speaker with no crossover Speakon NL4 connectors
Audio
Manifacturer Warranty
Our brands provide full warranty coverage on all listed products.
Tech Support
We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.
Free Demo
Dealers and installers can book a demo to experience the products in our showroom and learn more.
Training
Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.
Specs

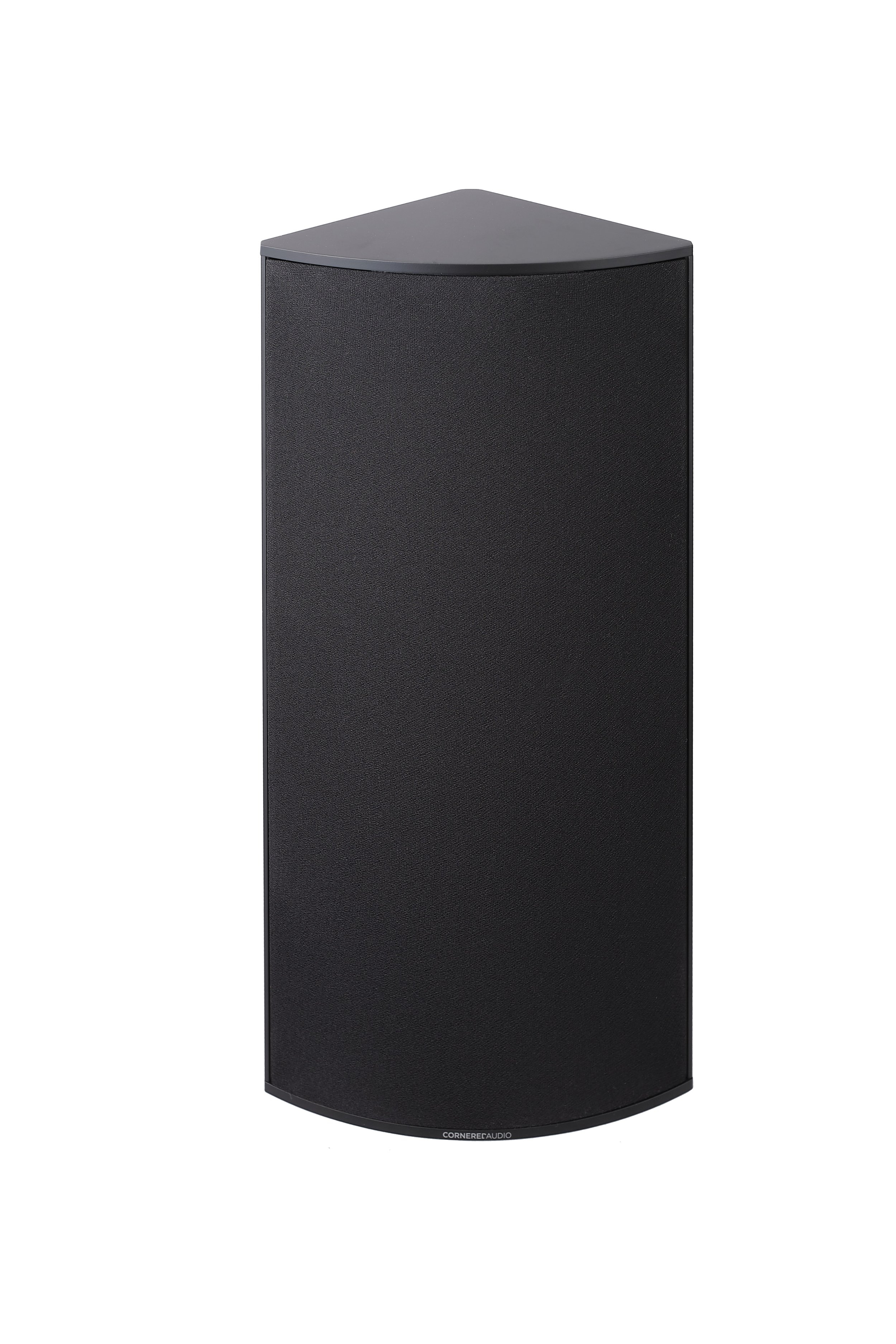

LS2 is an active speaker with an extreme output-to-size ratio. It is suitable for large Home Cinema applications or as a very loud speaker for large rooms and semi-outdoor applications. If space allows, two, three of four LSs’s can mount below each other and form a compact line source with coverage of 90×50 degree and an ability of delivering up to 108 dB in 30 meter.
There is no internal passive crossover and the LS2 is designed to be driven by the Cornered DSP amplifiers. The LS2 is a dedicated mid/high speaker that requires a subwoofer below 120 Hz.
The LS2 has a ported design for added output down to the 120 Hz crossover point and for added cooling in the compact cabinet. Custom brackets are available for the LS2, both for horizontal and vertical on-wall positioning as well as for hanging in clusters. LS2 is the ultimate loud Hi-Fi speaker!
Features
Feature | Details |
|---|---|
Woofers | 2 × 6½″ woofers with neodymium magnet |
Tweeters | 2 × 1″ horn-loaded dome tweeters |
Cabinet | Aluminium cabinet |
Application | Designed for high SPL applications |
Available colors | Black or white |
Specifications
Specification | Details |
|---|---|
Power handling / IEC268 | 500W |
Power handling / Peak | 2000W |
Sensitivity / 2.83V @ 1m | 96dB |
Maximum SPL / Long term | 123dB |
Maximum SPL / Peak | 129dB |
Frequency response | 120Hz–20,000Hz |
Nominal impedance | 16 Ohms |
Weight | 7.6kg / 16.8 lbs |
Dimensions / H × W × D | 502 × 232 × 167mm |
Dimensions / imperial | 19.8″ × 9.1″ × 6.6″ |
Triangular-form loudspeakers designed for installation along walls, ceilings and corners
Triangular-form loudspeakers designed for installation along walls, ceilings and corners
