Amplifier

LEA

CS84D

SMART AMP WITH DANTE | 4 CH | 80 WATTS PER CH

Audio

Get Price

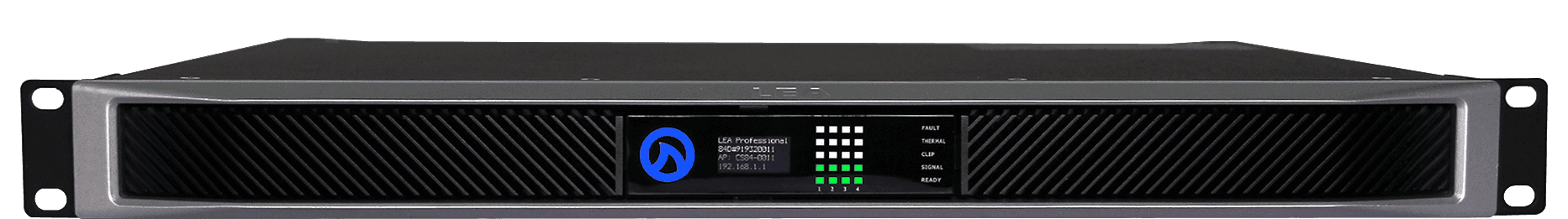

The LEA Professional CS84D is a 4-channel Dante CONNECT Series smart amplifier delivering 80 watts per channel at 4Ω, 8Ω, 70V, and 100V (40W at 2Ω). It adds native Dante audio-over-IP networking on top of the CONNECT Series platform.

Every channel has onboard DSP with input/output processing, parametric EQ, high- and low-pass crossovers, limiting, and delay. Three ways to connect — built-in Wi-Fi access point, existing Wi-Fi, or FAST Ethernet — are joined by native Dante for audio transport. Power-over-network control, cloud monitoring through the LEA platform, and selectable 70V/100V/low-impedance operation per channel make CS84D straightforward to deploy and manage across zoned commercial audio.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Channels	4
Power per Channel (2Ω)	40W
Power per Channel (4Ω)	80W
Power per Channel (8Ω)	80W
Power per Channel (70V)	80W
Power per Channel (100V)	80W
Audio Inputs	Analog balanced + Dante
Network	Wi-Fi AP, Wi-Fi, or FAST Ethernet + Dante
DSP	Onboard DSP — EQ, crossovers, limiting, delay per channel
Output Modes	Low-Z, 70V, 100V selectable per channel
Cloud	LEA cloud monitoring & control
Chassis	1U rack
