Amplifier
Manifacturer Warranty
Our brands provide full warranty coverage on all listed products.
Tech Support
We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.
Free Demo
Dealers and installers can book a demo to experience the products in our showroom and learn more.
Training
Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

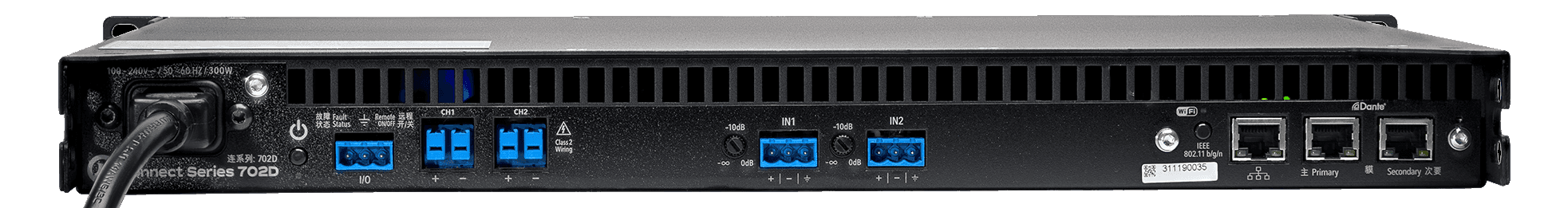

Specs
Channels | 2 |
|---|---|
Power per Channel (2Ω) | 350W |
Power per Channel (4Ω) | 700W |
Power per Channel (8Ω) | 700W |
Power per Channel (70V / 100V) | 700W |
Analog Inputs | 2 balanced, selectable 26 dB / 34 dB sensitivity |
Network Audio | 8 × 8 Dante at 96 kHz or 48 kHz; AES67 via Dante Controller |
Network | Built-in Wi-Fi AP, existing Wi-Fi, or FAST Ethernet (Cat5/Cat6) |
DSP | Analog Devices Sharc 96kHz Advanced DSP; FIR (2,048 taps/channel @ 96 kHz) + IIR up to 48 dB/oct; 8-band parametric EQ/channel; up to 4 s delay/channel |
Control | LEA CONNECT Cloud, Web Browser UI, 3rd-party API |
Dimensions | 14.25" × 19" × 1U (362 × 482 mm) |
Weight | 10 lbs / 4.5 kg |
Amplifiers for commercial AV systems with network architecture and remote access capabilities
Amplifiers for commercial AV systems with network architecture and remote access capabilities
