CA280DSP

Amplifier

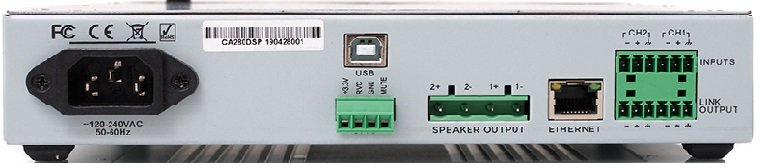

Rear panel with power, USB, speaker out, Ethernet, and input/output connectors.

CORNERED AUDIO

CA280DSP

2x2 matrix. Top grade 48 kHz/24 bit DSP. Automated room EQ. Dynamic loudness. Limiter. RMS compressor. Delay in time or distance. White/pink noise generator. Sound masking. Auto on/off. Energy Star compliant. No fan.

Audio

Get Price

Description

The CA280DSP is packed with features and is easy to use. In addition to being a highly efficient amplifier, the CA280DSP features an advanced DSP with automated room EQ. It offers excellent sound quality in a compact housing.

Simply access the amplifier's Wi-Fi network, load settings for your Cornered loudspeakers, and ask the amp to sweep the room and add room EQ, delay, and even Loudness if needed.

The CA280DSP will take it from there and with auto on/off and fan-free design, chances are you will never see it again.

Network Connection & Control

USB, RJ45, or Wi-Fi connection for system setup, monitoring, and control via remote PC software (included)
Simultaneous control of up to 32 units via PC software
Pre-sets for all Cornered loudspeakers
Connection for remote volume control (GPIO)

Specifications

Number of Channels: 2
Max Output Power (4&8 ohm) 2x140W
Max Output Power (Bridged) 1x280W
Max Output Power (100V) 1x280W
Output Circuitry: Class D
THD+N: <0.003%
Signal To Noise Ratio: >105 dB
Frequency Response 20-20kHz±0,1dB
Power Supply: Universal
Operating Range: 110-240V Mains
Stand-By 0,25 watt
Maximum Input/Output Level: +12 dB
Connections: Phoenix with a link on input
Dimension: 1U half rack space
(HxWxD): 44x220x234mm
Weight: 2,54 kg

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specs

Get Price

Specification	Detail
Channels	2 (bridgeable to 1)
Power output (4 ohm / 8 ohm)	2 x 140 W
Power output (bridged)	1 x 280 W
70 V / 100 V output	280 W (transformerless)
Amplifier class	Class D, fan-less
THD+N	< 0.003%
Signal-to-noise ratio	> 105 dB
Frequency response	20 Hz - 20 kHz (+/- 0.1 dB)
DSP engine	48 kHz / 24-bit, 24-bit AD/DA
EQ	5 input EQs + 30 output EQs (Bell, Lo/Hi-Shelf, variable Q)
Filters	HP/LP 6-24 dB/oct (Bessel, Butterworth, Linkwitz-Riley)
Control	USB, RJ45 or Wi-Fi to PC software (up to 32 units)
Mains	Universal 110-240 V
Standby power	0.25 W
Dimensions (H x W x D)	44 x 220 x 234 mm
