Description

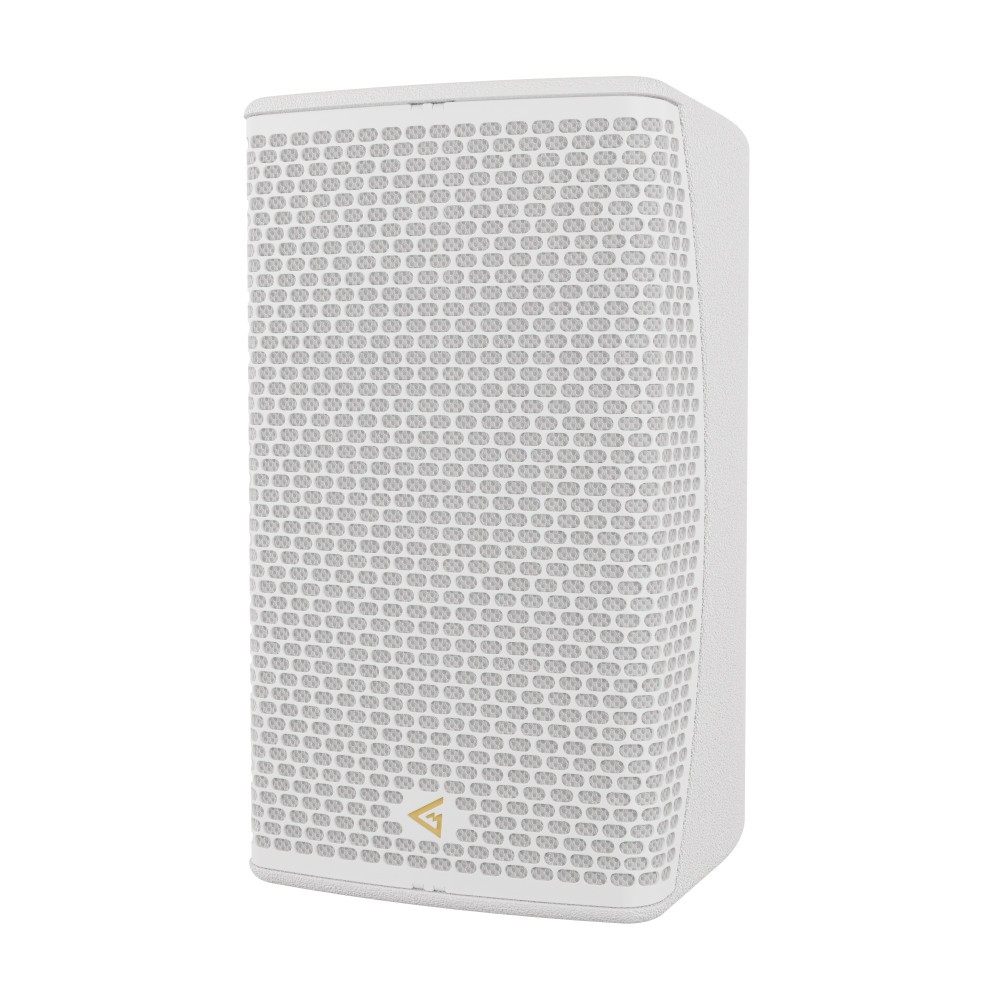

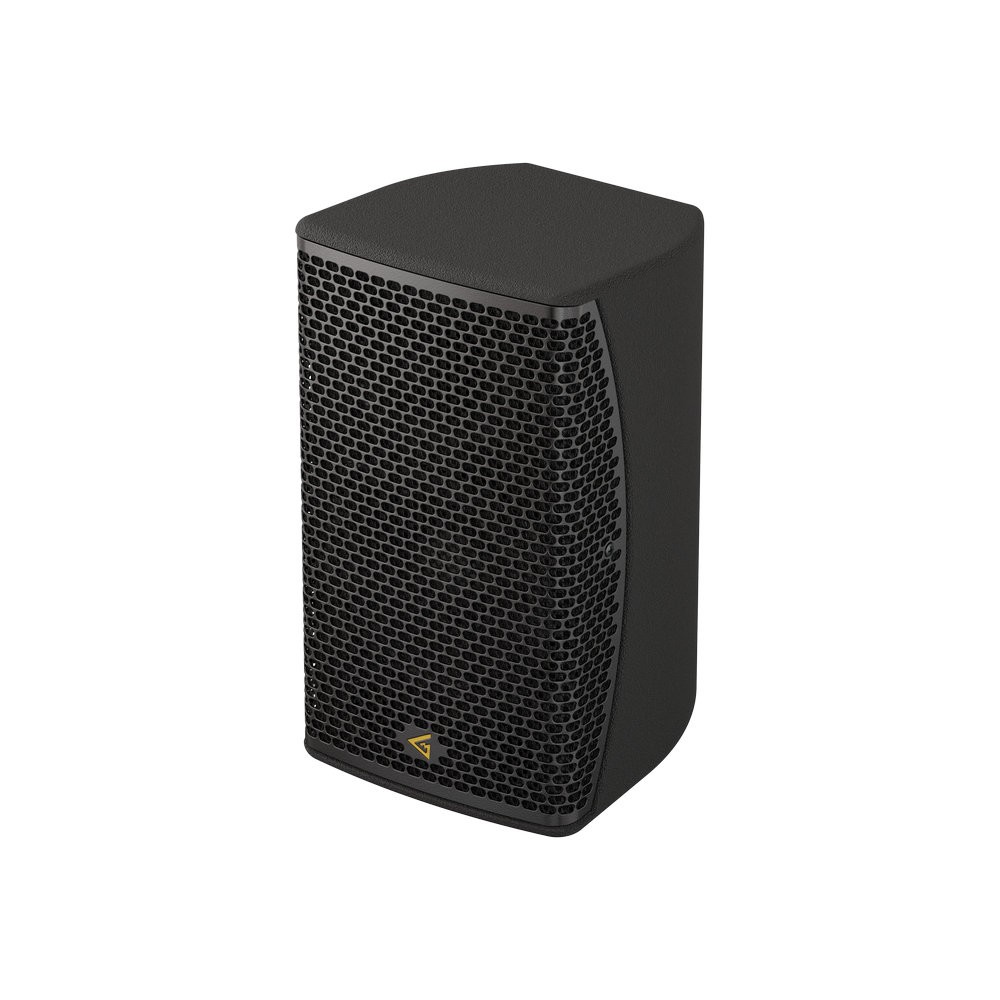

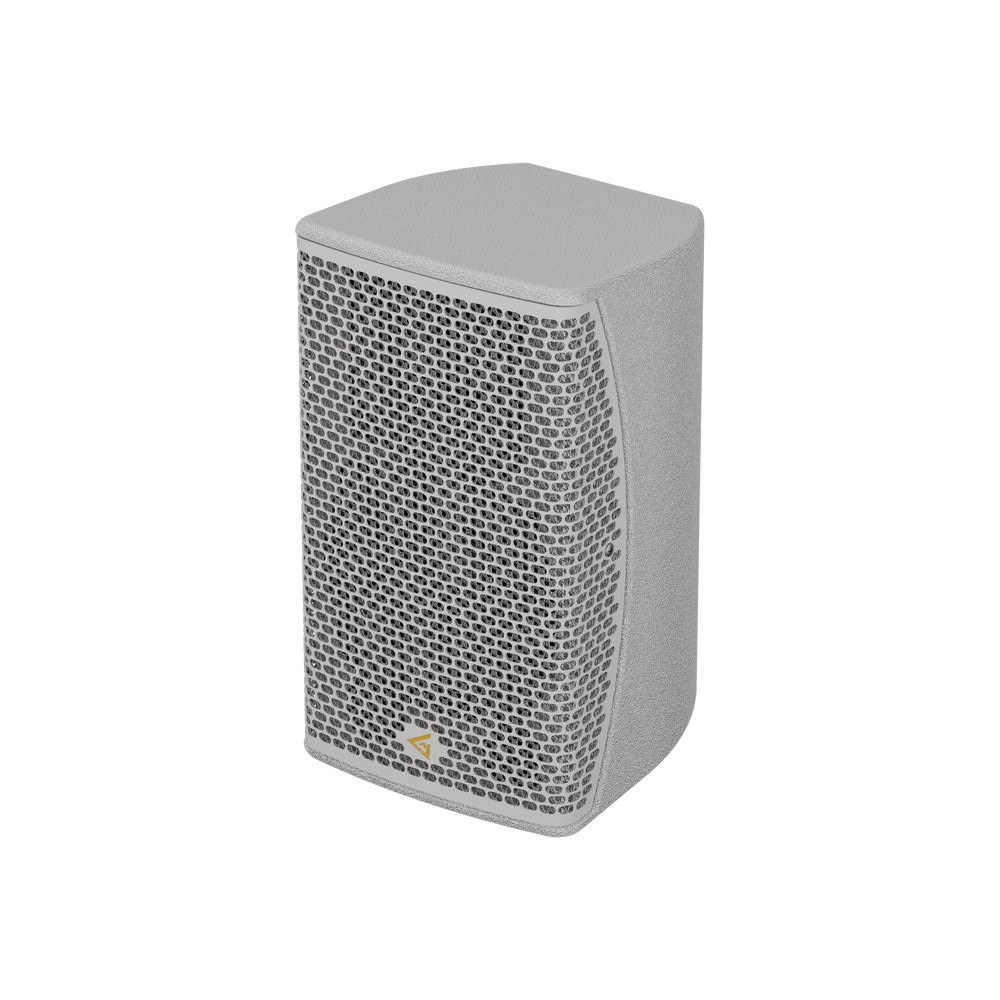

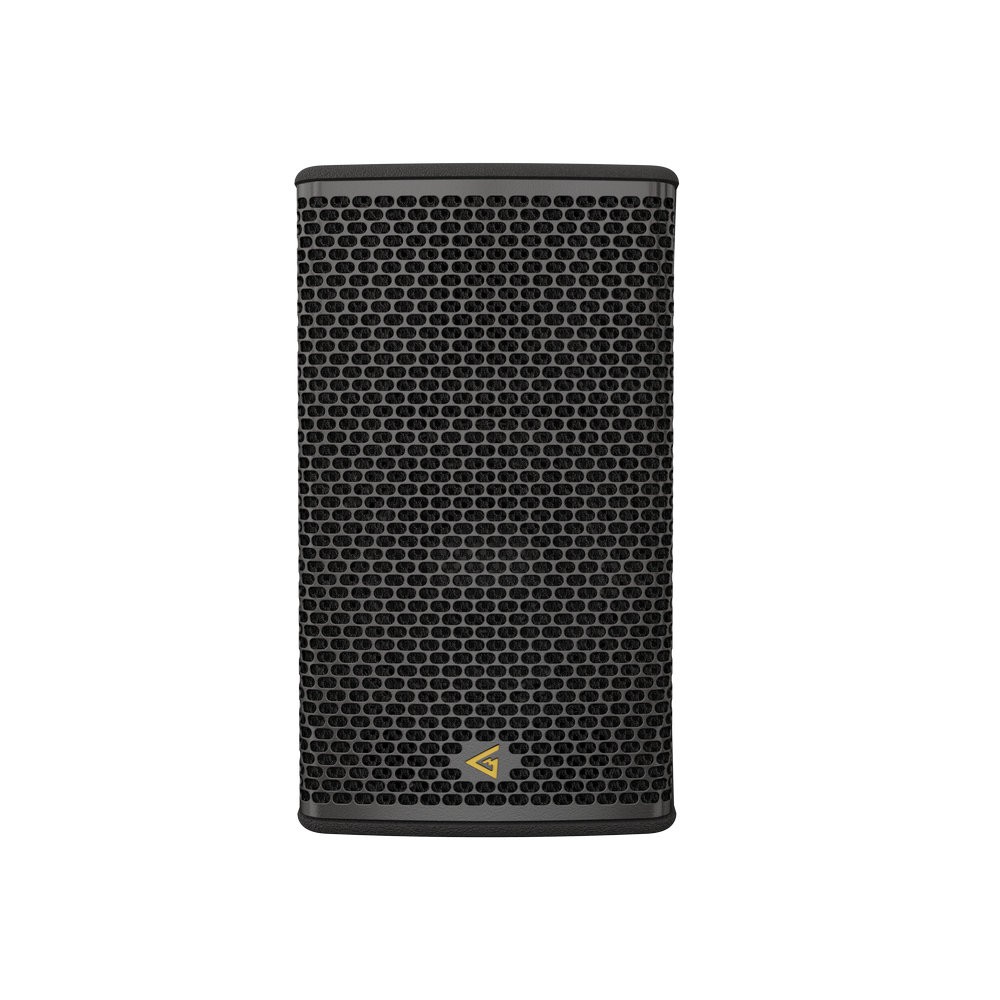

Packing the powerful punch, AIR-C6 is based on a 6,5” woofer and an HF driver on a rotatable horn. It is compatible with horizontal and vertical adjustable mountings and is available in 8 and 16 Ohm versions for optimal wiring and amplifier connection.
Product description:
Іnstallation speaker
Main features:
• 150 W nominal power
• 6,5”, 1,75" VC LF driver
• 125 dB Max SPL
• VESA 75 x 75, Safety mounting point
Type | Passive installation speaker |
Acoustical & Electrical data | |
Frequency response (-10dB) | 80 - 20000 Hz |
Max SPL 1 | 125 dB |
Sensitivity (1W/1m) | 91 dB |
LF Driver | 6,5”, 1,75" VC |
HF Driver | 0,75” throat, 1,35” VC |
Nominal Coverage Angle (Horizontal × Vertical) | 90° x 60°, rotatable horn |
Impedance | 8 Ohm (AIR-C6-8); 16 Ohm (AIR-C6-16) |
Nominal power 2 | 150 W |

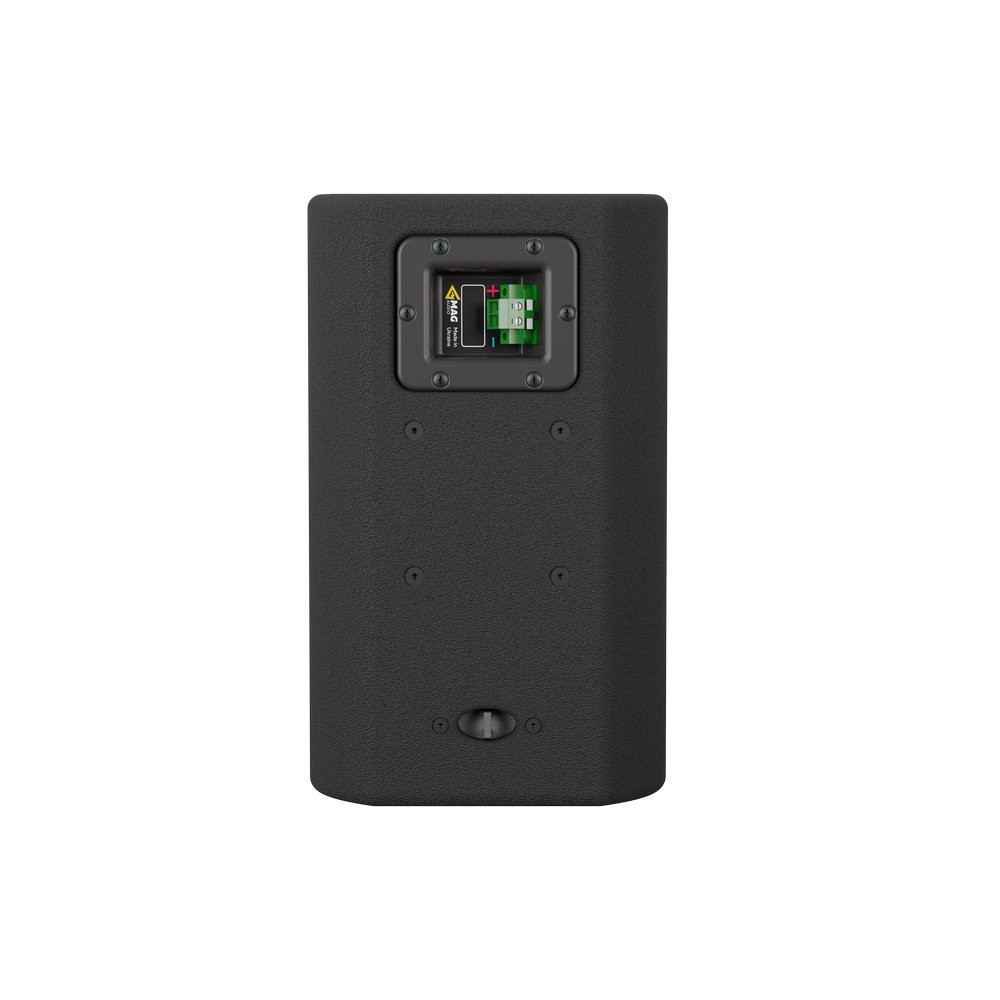

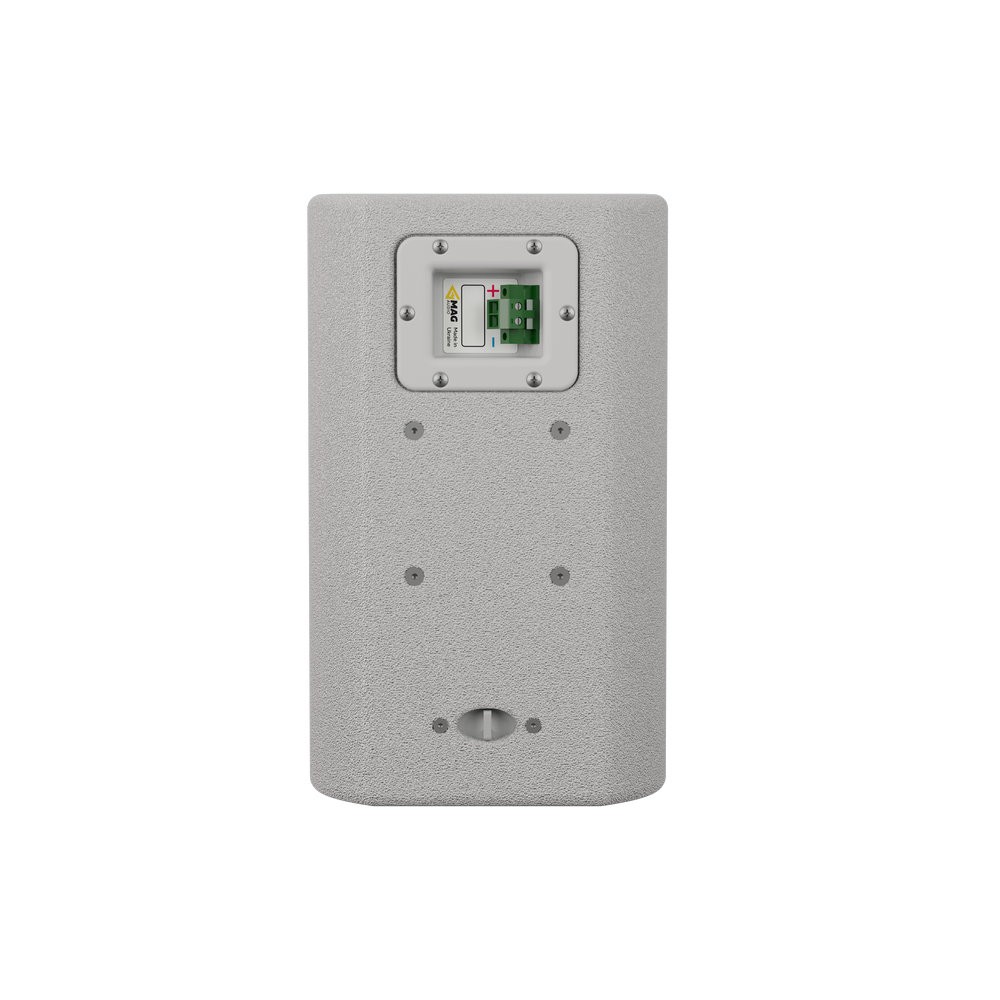

Connectors | Phoenix |
Connections and physical data | |
Dimensions (W x H x D) | 350 x 200 x 200 mm; 13,78” x 7,87” x 7,87” |
Net weight | 6,4 kg; 14,1 lbs |
Shipping weight | 7,2 kg; 15,9 lbs |
Mounting | VESA 75 x 75; Safety mounting point |
Weather protection | IP54 rated |
Enclosure material | Polycomp©, wear-resistant paint |
Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 12 dB
2 based on transducer power measured according to AES 2 - 2012
