Speaker

Black line array speaker with honeycomb grille and logo

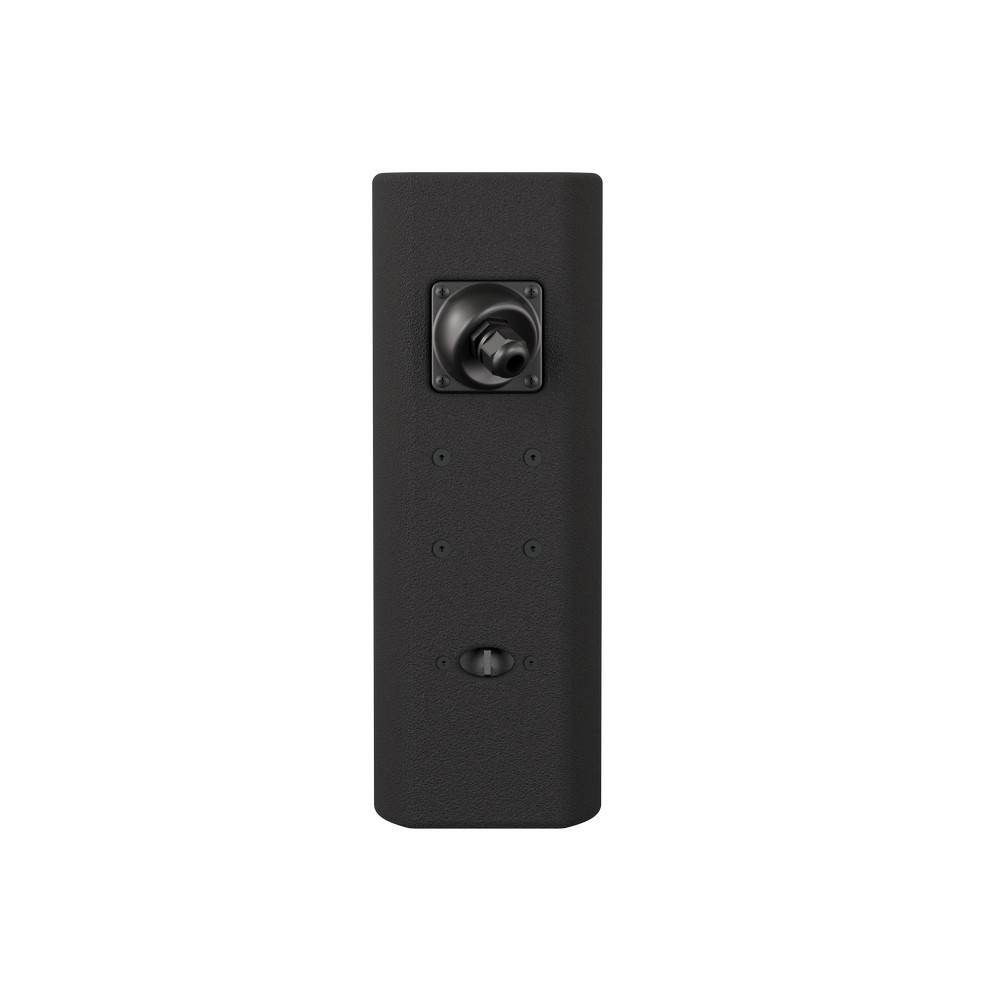

AIR-C24 - installation speaker

High-quality installation-ready speakers

Audio

AIR-C series sets a new standard for small-format permanent installations for retail, entertainment, malls, and club settings. With a rich Hi-Fi sound quality and solid SPL performance AIR-C speakers are nevertheless compact, easy to install and tune, and fully customizable. The secret of the series’ ultimate performance is low distortion high-performing transducers and a proprietary Polycomp© wood/polyurethane composite cabinet technology. It allowed for the special cabinet form that eliminates internal standing waves. Not only that, the composite dramatically reduces the cabinet resonances itself, bringing clarity and intelligibility to a whole new level. With a small visual footprint, the AIR-C24 is a high-performing system with two 4” woofers and an HF driver on a rotatable horn. It is compatible with horizontal and vertical adjustable mountings and is available in 8 Ohm for ease of parallel usage.

Download Data Sheet

Learn more about the product specifications

Download

Manifacturer Warranty

Our brands provide full warranty coverage on all listed products.

Tech Support

We provide system support to dealers and installers by offering product guidance, installation and wiring, product troubleshooting, and control programming to ensure optimal performance.

Free Demo

Dealers and installers can book a demo to experience the products in our showroom and learn more.

Training

Dealers and installers receive training on product specs and programming controls to enable effective and convenient distribution. Dealers and installers will be well prepared to meet their clients' needs and expectations.

Specification

Value

Type

Passive installation speaker

Frequency response (-10dB)

85 - 20000 Hz

Max SPL

123 dB

Sensitivity (1W/1m)

91 dB

LF Drivers

2 x 4", 1" VC

HF Driver

1" carbon fiber diaphragm, 1" VC, ND magnet

Coverage Angle (H x V)

100° x 70°, rotatable horn

Impedance

8 Ohm

Nominal power

100 W

Connectors

Phoenix

Dimensions (W x H x D)

385 x 134 x 146 mm

Net weight

4.4 kg

Mounting

VESA 50 x 50; Safety mounting point

Weather protection

IP54
