Description

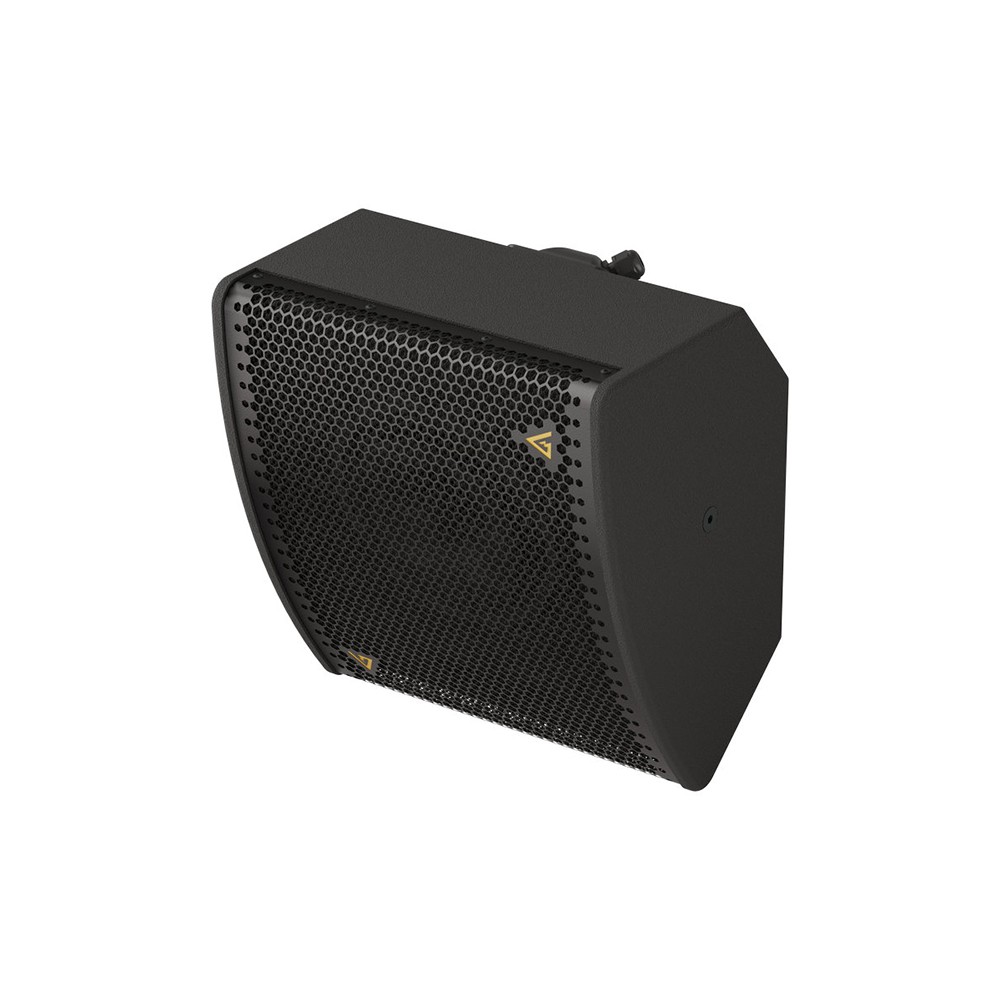

Weather-resistant speaker, AIR-82 IP comes in extremely compact size, featuring 8” coaxial woofer. The model has numerous mounting options, providing usability for each and every project.
Product description:
Weather-resistant speaker
Main features:
• 250 W nominal power
• 8” coaxial driver
• 127 dB Max SPL
• VESA 75x75, M10 mounting points
Type | Weather-resistant speaker |
Acoustical & Electrical data | |
Frequency response (-10dB) | 80 - 18000 Hz |
Max SPL 1 | 127 dB |
Sensitivity (1W/1m) | 94 dB |
LF Driver | 8" coaxial |
Nominal Coverage Angle (Horizontal × Vertical) | 90 x 90 deg |
Impedance | 4 / 8 / 16 Ohm |
Nominal power 2 | 250 W |
Connectors | Phoenix |
Connections and physical data | |
Dimensions (W x H x D) | 354 x 383 x 254 mm |
Net weight | 9,5 kg |
Shipping weight | 10,5 kg |
Mounting | VESA 75 x 75; 2 x M10 Mounting points; M10 safety point |
Weather protection | IP 54 weather-protection |
Enclosure material | Plywood; wear-resistant paint |
Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB
2 based on transducer power measured according to AES 2 - 2012
