Description

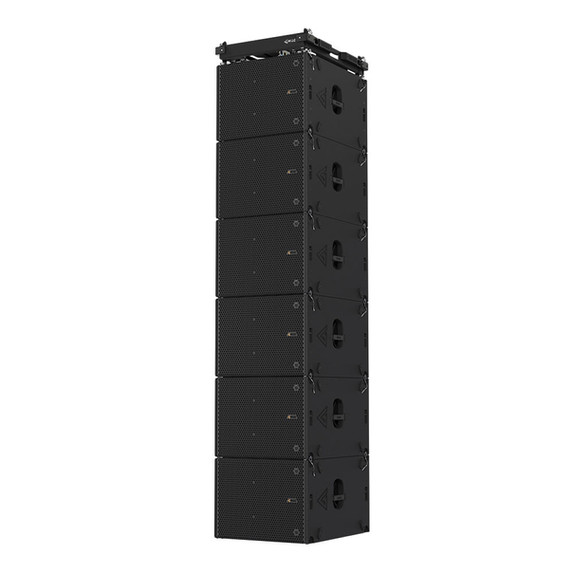

WASP has received the most advanced components to assist with task of creating the ultimate compact line-array solution.
Thoroughly designed cabinets, most advanced proprietary mounting system, and wide selection of mounting and connectivity accessories was called in to provide the fast mounting\dismounting times, as well as ease of transportation and storage.
The WASP-S15 has been designed to be a reliable low-frequency support for WASP line array. Based on 15’’ LF woofer, the system delivers 137 dB of sound pressure. Featuring specifically designed integrated hardware, WASP-S15 can be used both in a stack or in a flown cluster.
Product description:
Passive arrayable subwoofer
Main features:
• 1000 W nominal power
• 15” woofer with 4” voice coil
• Efficient hybrid horn design
• 137 dB Peak SPL
• Integrated flying hardware
Type | Passive arrayable subwoofer |
Acoustical & Electrical data | |
Frequency response (-10dB) | 35 – 300 Hz |
Peak SPL 1 | 137 dB |
Sensitivity (1W/1m) | 95 dB |
LF Driver | 15", 4" VC |
Impedance | 8 Ohm |
Nominal power 2 | 1000 W |
Connectors | 4 x NeutrikSpeakon |
Connections and physical data | |
Dimensions (W x H x D) | 620 x 464 x 765 mm |
Net weight | 48,4 kg |
Shipping weight | 51,5 kg |
Mounting | Intergrated flying hardware, M20 distance pole adapter |
Enclosure material | Plywood; wear-resistant paint |
Grill | Steel grill, synthetic acoustically transparent cloth |
1 pink noise, filtered according to AES 2 - 2012, crest factor 12 dB
2 based on transducer power measured according to AES 2 - 2012
