Description

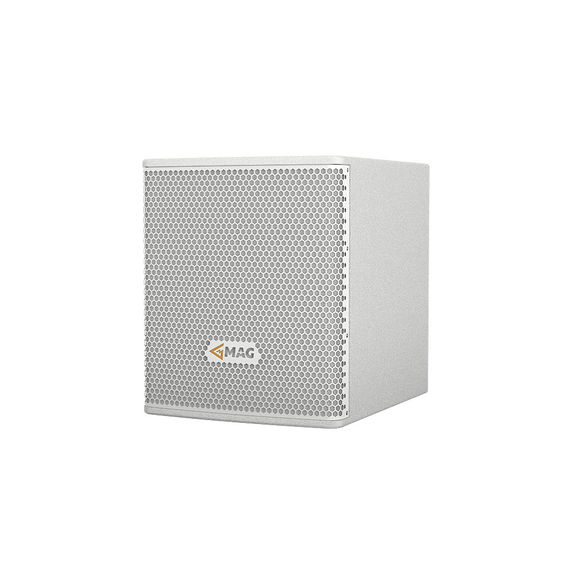

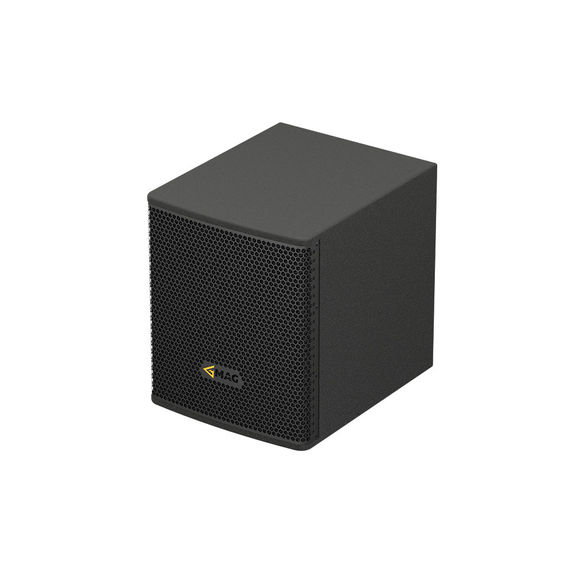

With significant sound pressure output and compact enclosure, Sub 12 IP is a versatile low-frequency extension loudspeaker for reinforcing full-range cabinets. Based on own produced long excursion 12” woofer, Sub 12 IP is perfect for mobile sound system or small-scaled installation due to its' compact enclosure and light weight.
Product description:
Weather-resistant subwoofer
Main features:
450W nominal power
12” woofer with 3” voice coil
Efficient vented box design
133,5 dB Peak SPL
Type | Weather-resistant subwoofer |
Acoustical & Electrical data | |
Frequency response (-10dB) | 45 - 300 Hz |
Peak SPL 1 | 133,5 dB |
Sensitivity (1W/1m) | 95 dB |
LF Driver | 12", 3" VC |
Impedance | 4 / 8 Ohm |
Nominal power 2 | 450 W |
Connectors | Speakon |
Connections and physical data | |
Dimensions (W x H x D) | 400 x 480 x 494 mm |
Net weight | 29 kg |
Shipping weight | 32 kg |
Weather protection | IP54 weather-protection |
Enclosure material | Plywood; wear-resistant paint |
Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 12 dB
2 based on transducer power measured according to AES 2 - 2012
