Description

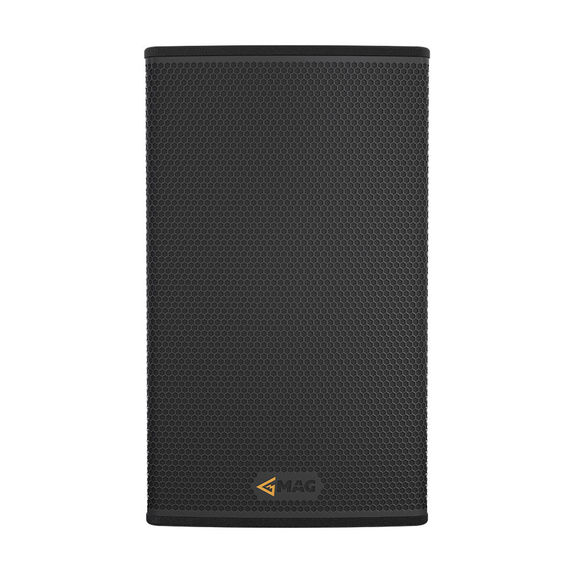

NX 15 is a passive full-range speaker, based on low distortion high performance 15” neodymium woofer and 1,5” neodymium HF driver. Powerful, lightweight, sonically superior and great looking – NX 15 is the speaker of choice of innovative rental companies, tour sound providers and complete sound reinforcement solution designers.
Product description:
Passive full-range speaker
Main features:
• 500W nominal power
• 15” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 134,5 dB Max SPL
• Pole mount adapter, M10 mounting points
Type | Passive full-range speaker |
Acoustical & Electrical data | |
Frequency response (-10dB) | 45 - 19000 Hz |
Max SPL 1 | 134,5 dB |
Sensitivity (1W/1m) | 98,5 dB |
LF Driver | 15”, 3" VC |
HF Driver | 1,5”, 2,8" VC |
Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
Impedance | 8 Ohm |
Nominal power 2 | 500 W |
Connectors | 2 x NeutrikSpeakon |
Connections and physical data | |
Dimensions (W x H x D) | 436 x 735 x 423 mm |
Net weight | 26 kg |
Shipping weight | 28 kg |
Mounting | 10 x M10 mounting points, 35 mm pole socket, carrying handles, plastic feet |
Enclosure material | Plywood; wear resistant paint |
Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB
2 based on transducer power measured according to AES 2 - 2012
